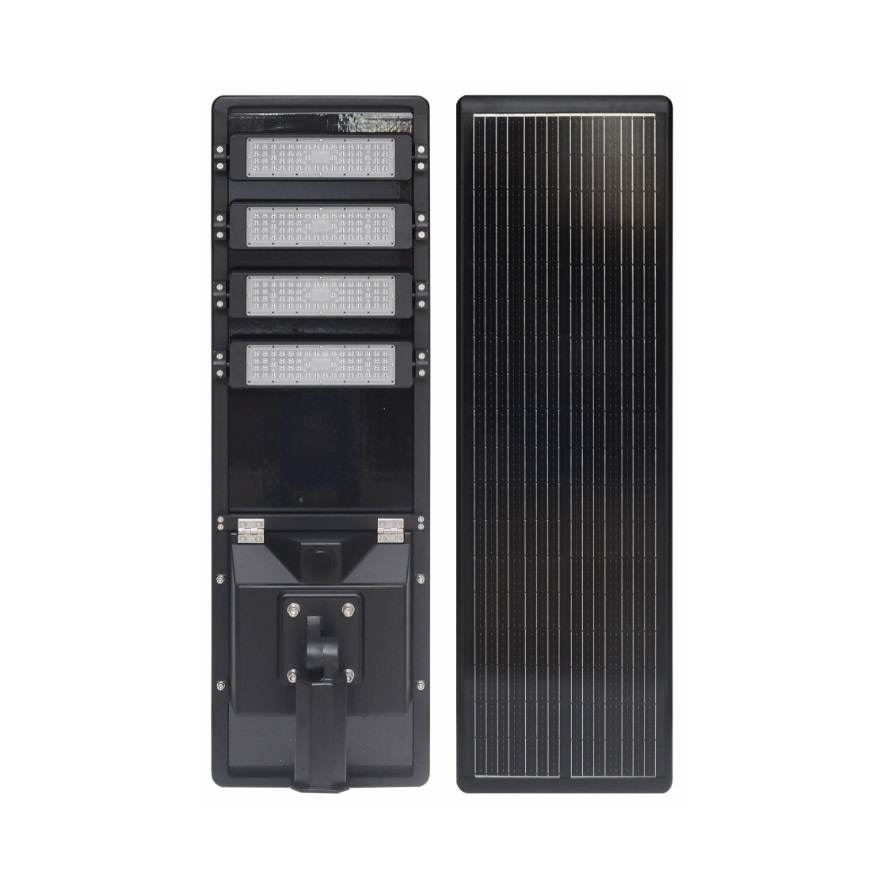

YF-A4M-3.2V-200W ELECTRIC ADJUSTABLE INTEGRATED STREET LAMP SERIES

Certification:              CE/3C/RoHs

Delivery Time:          20-25 days

Payment Terms:      L/C,D/A,D/P,T/T

Charging Time:        6-8 hours

Discharging Time:   30-36 hours

Lumen:                      200lm/w

Material:                  Die-casting Aluminum

Install Height:             8-10m

Start Port:                     Jiangmen,Guangdong

Supply Ability:            3000PCS/Month



Key Features of the solar street light

1.200W high output with compact foldable design (0.1m³) and lightweight 5.8kg for easy portability.

2.IP65 waterproof/dustproof rating, operates in -20°C~60°C for extreme environments.

3.Deploy in 5 minutes; charges 100Ah battery by 20% in 2 hours under direct sunlight.

4.15% higher energy yield in low-light conditions, ideal for cloudy regions.

Apllication

1.Residential rooftop systems for self-consumption and feed-in tariff programs.

2.Commercial & industrial distributed energy solutions for carbon reduction.

3.Off-grid systems with battery storage for remote areas.

4.Agrivoltaic solutions for greenhouses and irrigation systems..

Advantages

1.Military-Grade DurabilityScratch-resistant ETFE surface with 10-year lifespan

2.Plug-and-Play: Pre-installed terminals enable 2-hour setup.

3.Eco-Friendly: Zero emissions, compatible with renewables.

4.Safety AssuranceOvercharge/short-circuit protection for worry-free use









ModelPowerSolar panelBattery capacitySize(mm)Parameter
YF-A4M200W

18V120W

1296*394*4mm


12.8V60AH1360*420*240
  1. Lamp body material: Die cast aluminum
  2. Light on time: full light more than 15 hours
  3. energy saving mode lights up for more than 48 hours,
  4. Charging time: 6-8h
  5. Working temperature: -30℃-+60℃
  6. Lamp bead: Philips 5050SMD 56PCS*4
  7. Installation height: 4-6 meters
  8. Color temperature: 3000-6000k
  9. Luminous flux: 200lm/w
  10. Light power: 80W
  11. The whole lamp lumen: 14000LM
  12. IP rating : IP65
  13. Light distribution type: Type III
  14. Beam angle: 60°*150°


Factory pictures
