High-Power Modular LED High Mast Light-8
  • 🔹 Model: YF-ECO-8M
  • 🔹 Power: 30W / 40W / 60W / 80W / 100W / 120W
  • 🔹 Monocrystalline Silicon Solar Panel
  • 🔹 PHILIPS LED Source with Japen Teijin Lens
  • 🔹 High Capacity LiFePO4 Lithium Battery

  • 🔹 Die-Casting Aluminum Housing

  • 🔹 IP65 Waterproof Protection

  • 🔹 CE & RoHS Certified

🔧 Product Function (Application):

Specifically engineered for large-scale outdoor lighting demands. Ideal for sports stadiums, seaports, airport aprons, highway interchanges, large-scale warehouses, construction sites, and public squares. Provides wide-area, shadow-free illumination to ensure maximum safety during night-time operations and events.



Technical Data

ModelYF-ECO-8M
Solar panel100W/18V, MONO
Rated power80W
MaterialDie-casting Aluminum
LED chipPhilips 3030 56PCS×8
Lumens12800LM
LiFePO4 battery200AH / 3.2V-640WH
Install height8M
Spacing25-30M
Pole diameter58/76mm
Color temp.3000 / 4000 / 6500K
Work temp.-20℃ ~ +60℃ (When the temperature is below -10℃, derating use)
Water proofIP65
Charge time6–8H
Lighting timeLight on at dusk, Light off at dawn auto.
12 hours lighting time per day, 2 rainy days backup.
Size1530 × 400 × 50MM

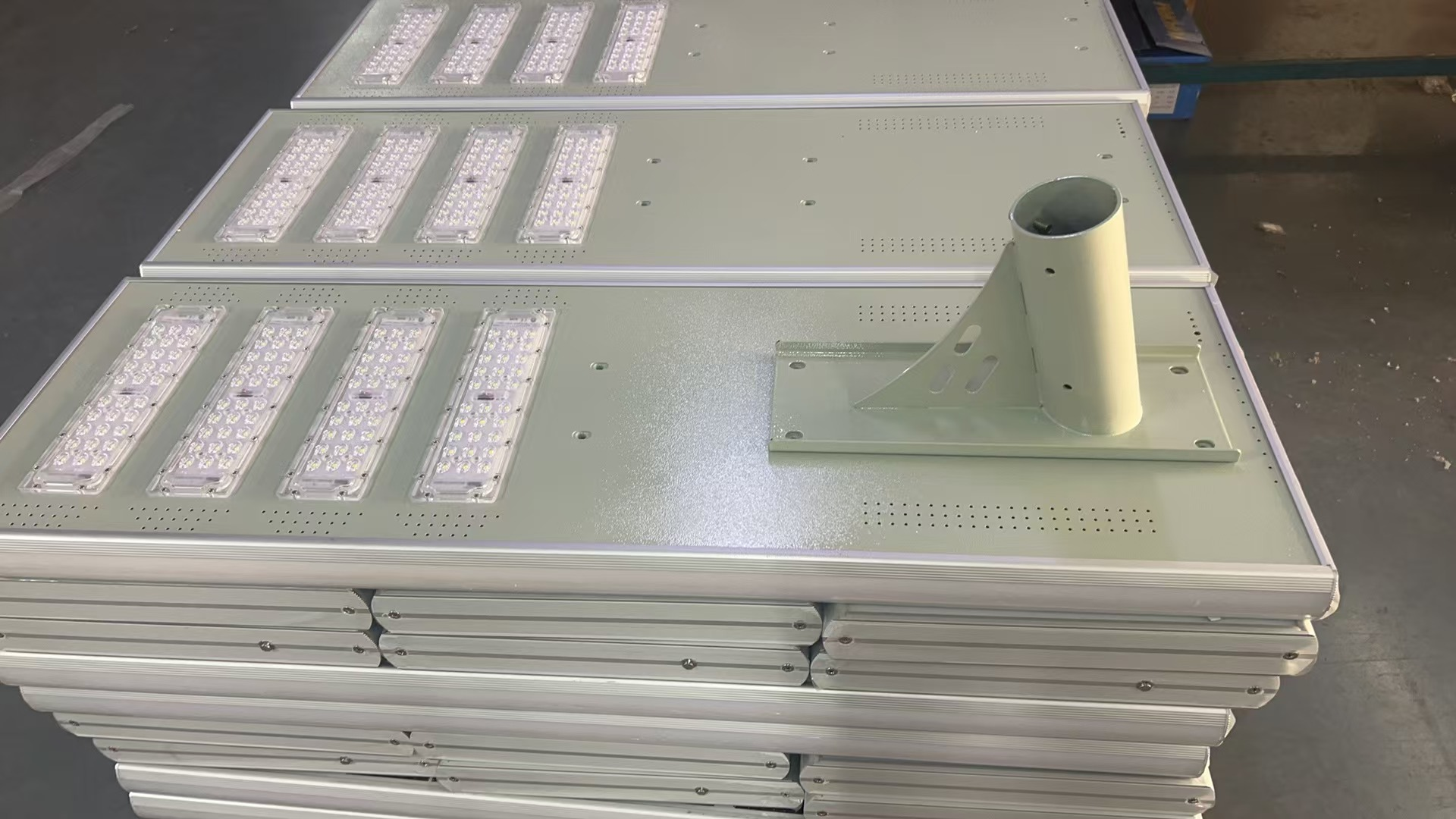

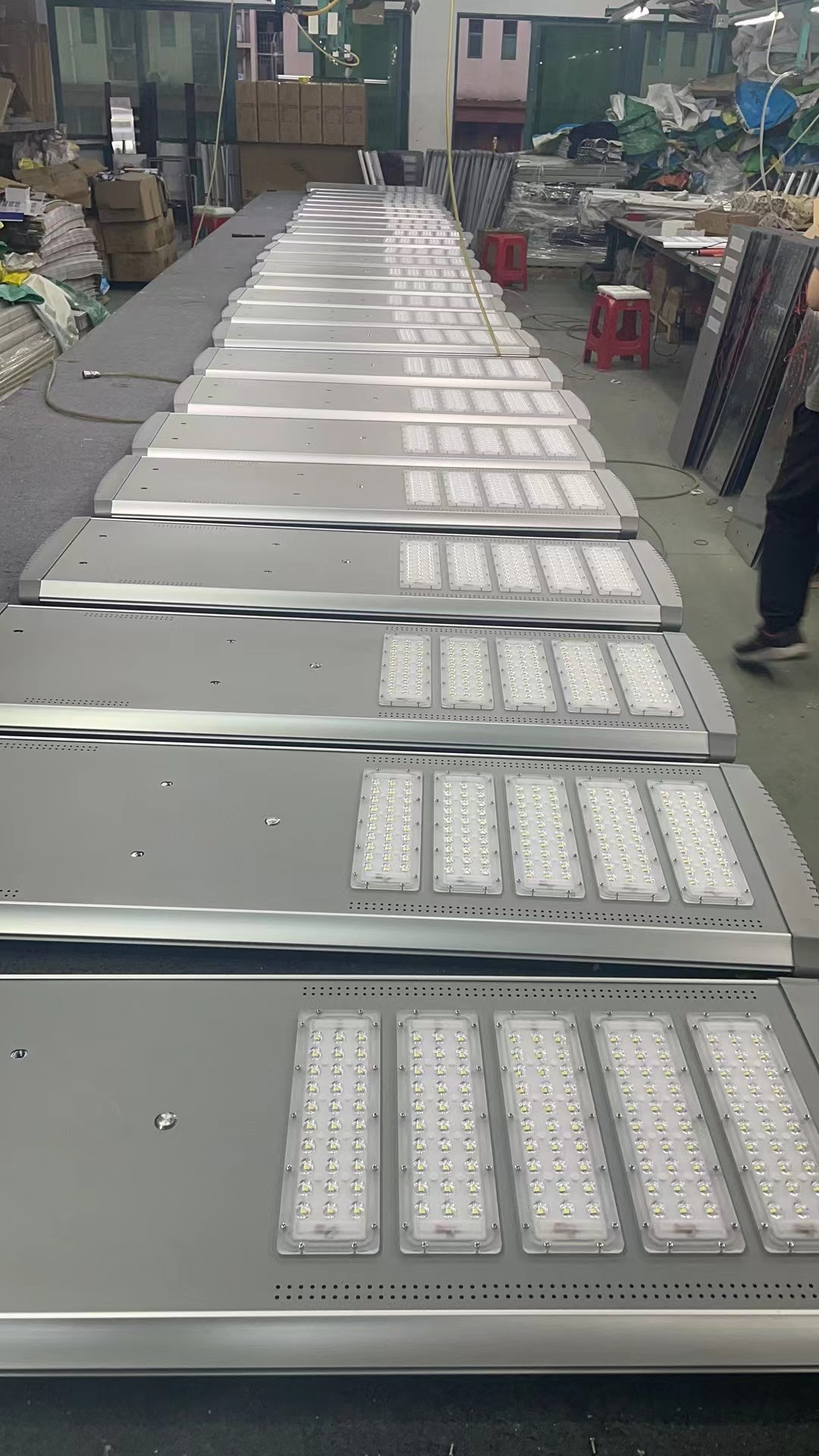

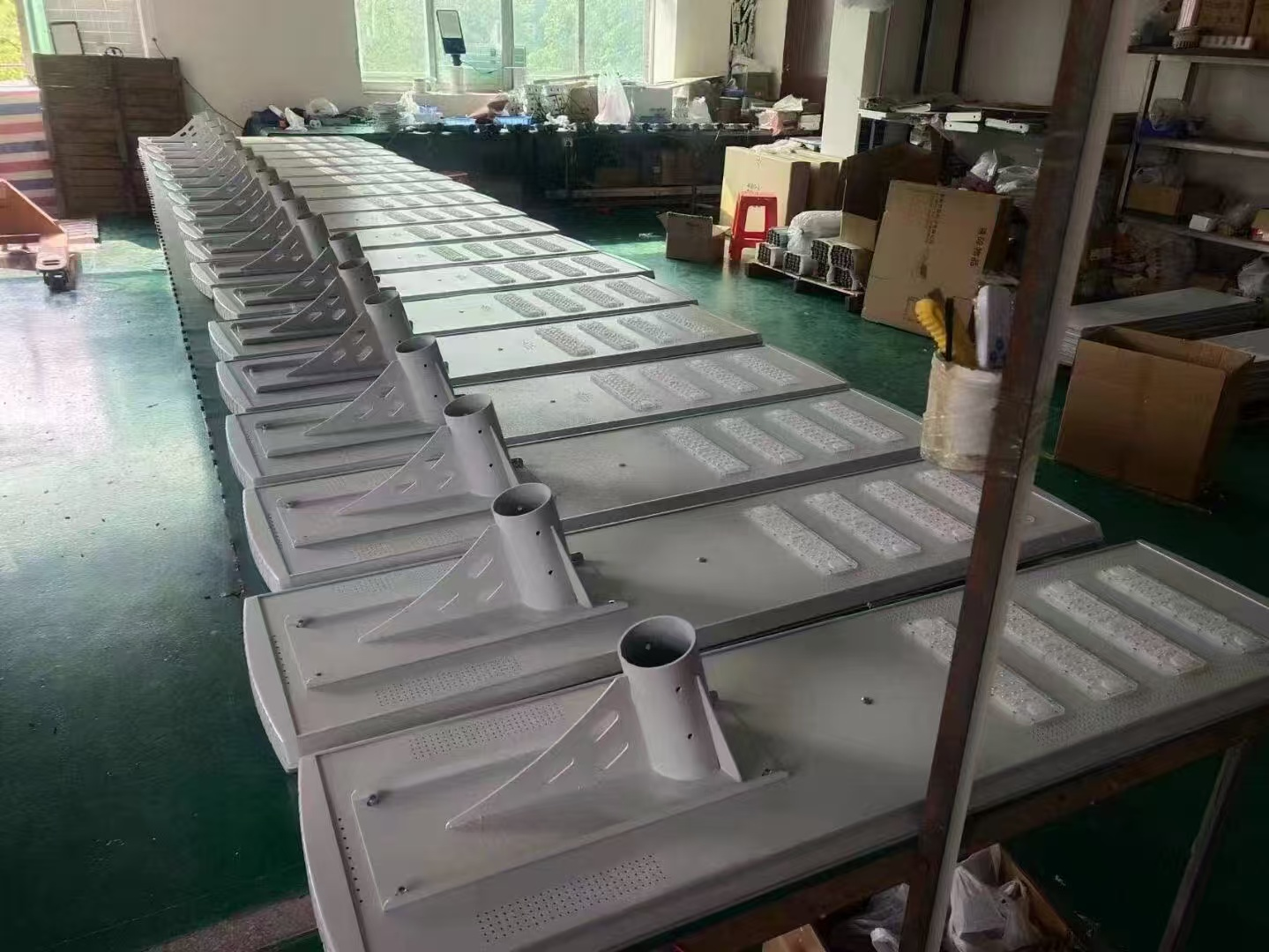

Factory pictures
